FOS 5MP Five-Camera Solar CCTV | 3 PTZ | 4G/Wi-Fi | IP66

Description

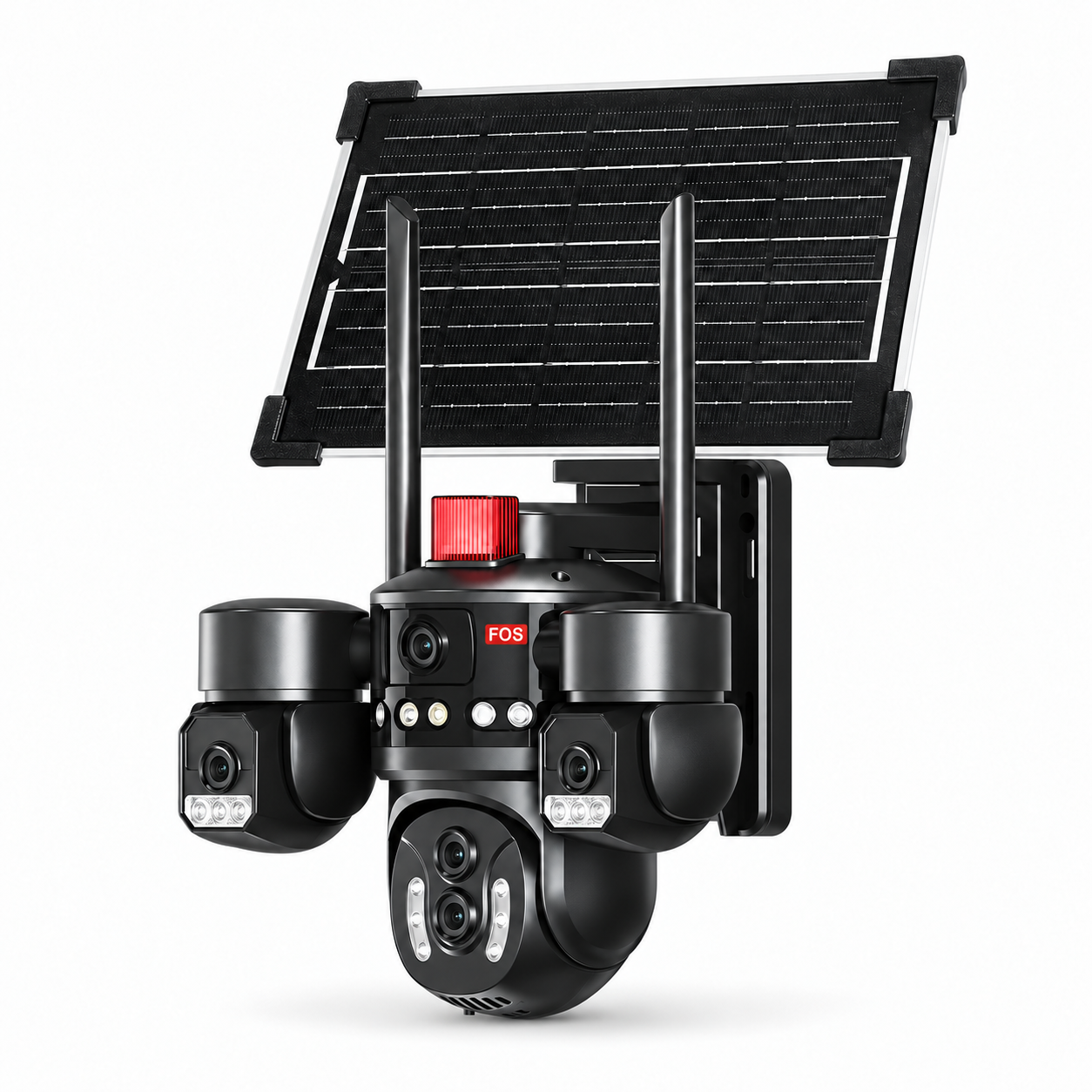

5MP Five-Camera Solar CCTV with Three PTZ Assemblies

The FOS 5MP Five-Camera Solar CCTV is designed for outdoor locations requiring broader and more flexible monitoring from one installation point. Its five-camera architecture provides multiple viewing perspectives, while three PTZ assemblies support app-controlled pan, tilt and zoom-enabled viewing.

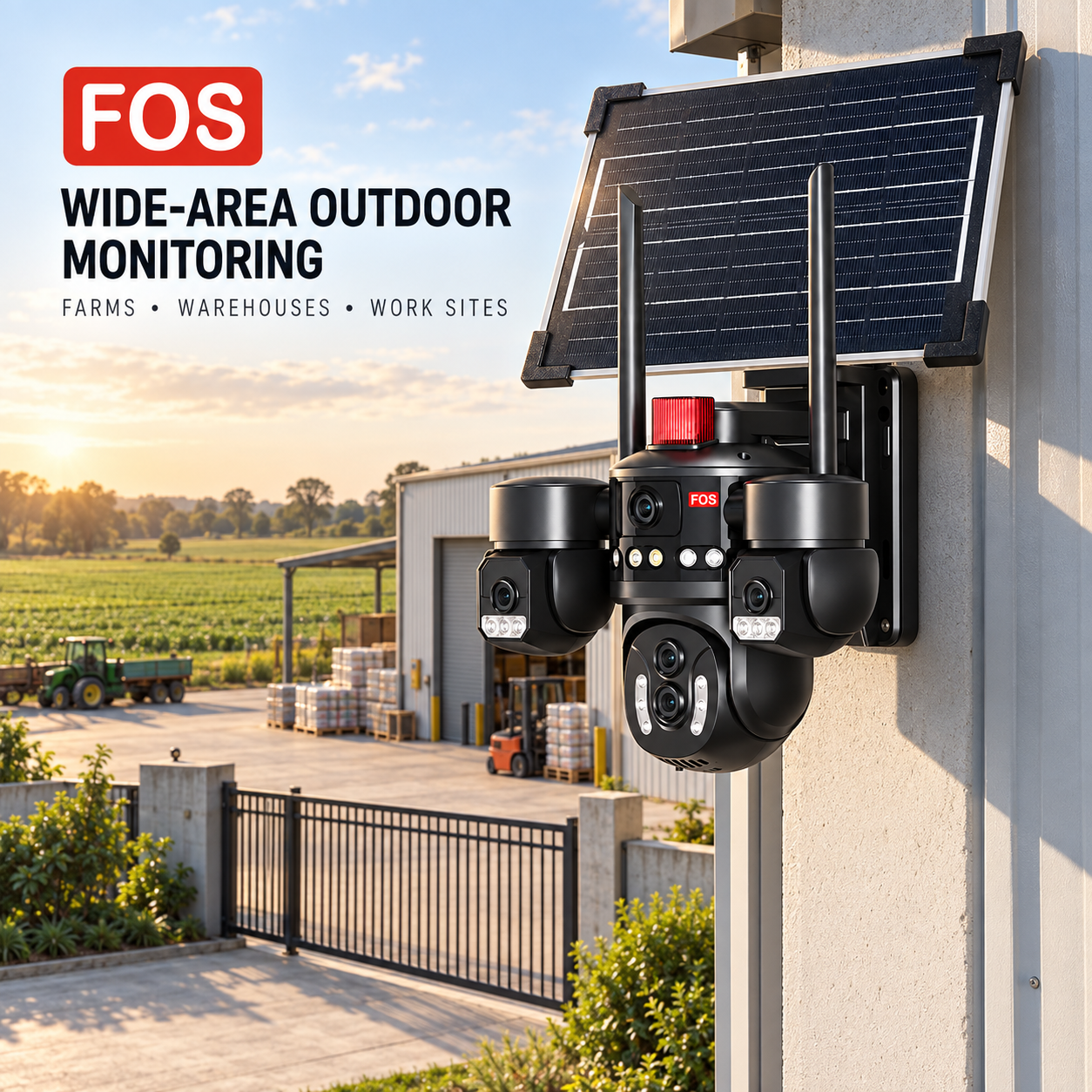

This combination is useful for farms, warehouses, construction sites, parking areas, industrial yards, building entrances and other locations where a conventional single-camera view may leave important areas outside the preferred monitoring direction.

The 5MP specification applies to the complete camera system. It must not be interpreted as five separate 5MP cameras.

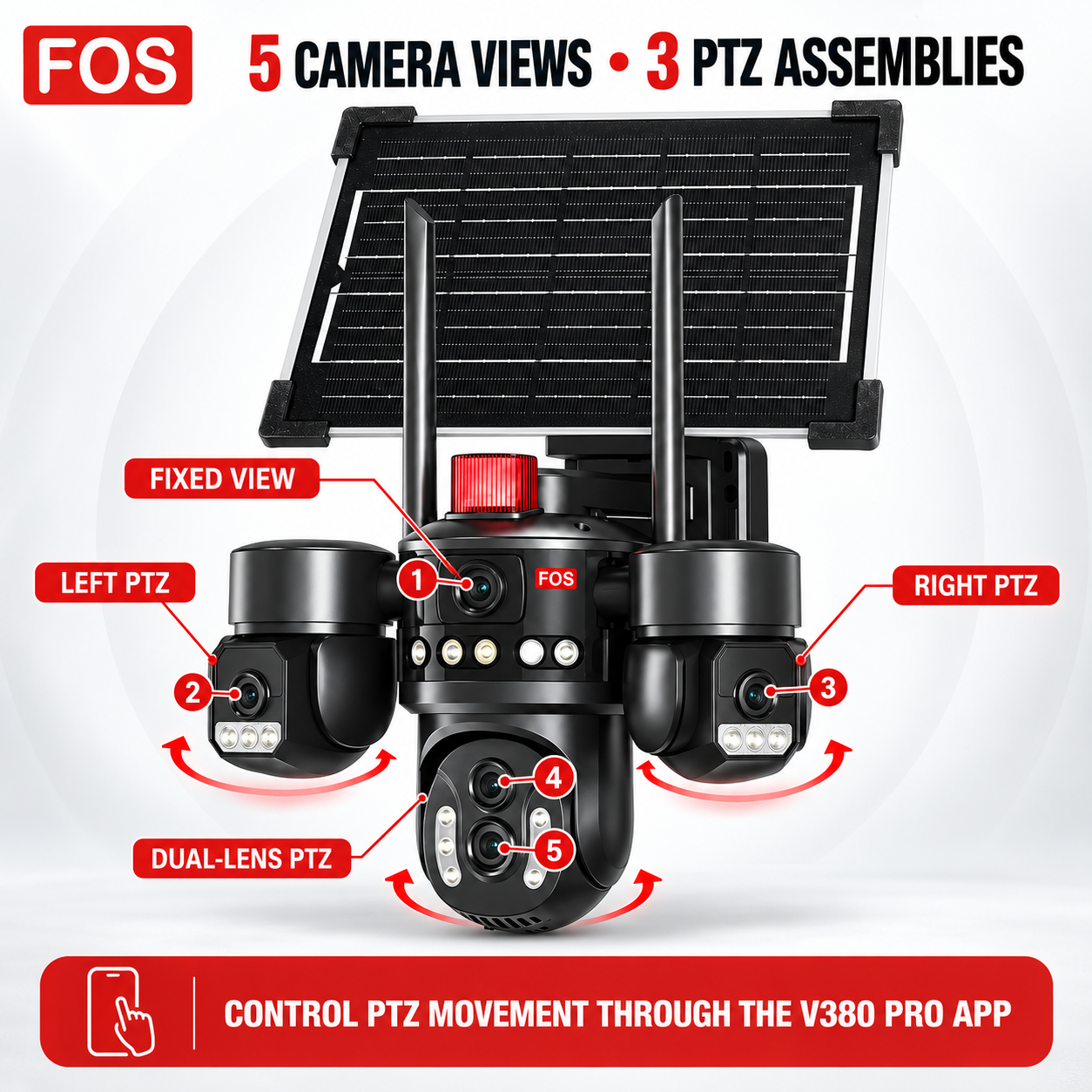

How the Three PTZ Assemblies Improve Coverage

PTZ stands for pan, tilt and zoom. The three PTZ assemblies help the camera system observe different parts of the monitored location more flexibly. Using the V380 Pro mobile application, the user can access the available movement and zoom controls and adjust the view according to the site layout.

The catalogue does not specify whether the zoom function is optical or digital, so the product is described only as offering zoom-enabled viewing. No unsupported zoom magnification is promised.

The system also supports 360° rotational viewing. Actual coverage depends on mounting height, camera position, surrounding structures and the location of walls, trees, roofs or other possible obstructions.

Choose the Right Connectivity Variant

The product is available in two separate connectivity variants: 4G and Wi-Fi. Select the required option before placing the order.

4G Variant

The 4G model is suitable for locations where a dependable Wi-Fi connection is unavailable but compatible mobile-network coverage is present. This can include farms, construction projects, storage yards and other remote premises.

To operate the 4G variant, insert a compatible activated SIM with an active data plan and connect the camera through the V380 Pro app. Network availability, SIM compatibility, data speed and usage charges depend on the selected mobile operator and installation location.

Wi-Fi Variant

The Wi-Fi model is suitable for homes, offices, shops, warehouses and commercial premises where a reliable Wi-Fi signal reaches the intended installation point. Remote access also depends on the availability and stability of the local internet connection.

The 4G and Wi-Fi models are separate variants. Do not describe either unit as supporting both connectivity methods simultaneously.

5MP Monitoring with Night Vision

The 5MP camera system is designed to provide clear outdoor monitoring for everyday security applications. Its multiple viewing perspectives help the user observe a wider area from one installed system.

Night-vision support enables monitoring after dark. The catalogue does not provide a verified night-vision distance or specify a particular night-vision technology, so no unsupported range or colour-night-vision claim should be added.

Human-Detection Recording

Human-detection recording helps the system focus on activity involving people within the monitored area. This can make stored footage more useful when reviewing movement around an entrance, boundary, yard, building or work site.

Detection performance can vary with the mounting position, subject distance, lighting, weather, movement direction and surrounding environment. Do not add PIR detection, automatic tracking or alarm claims unless separately verified for the supplied unit.

Remote Monitoring through the V380 Pro App

Download the V380 Pro application from the appropriate official app store on a compatible smartphone. After the camera has been installed and connected, the app provides access to supported live-view, movement, zoom, recording and two-way-audio functions.

This allows the user to check the location remotely, adjust the available viewing direction and communicate with a person near the camera. Two-way audio can be useful at gates, farms, warehouses, project sites and delivery entrances.

Connecting the Camera with V380 Pro

1. Install the camera and solar panel in a suitable outdoor location.
2. For the 4G model, insert a compatible activated SIM with an active data plan. For the Wi-Fi model, keep the local Wi-Fi network details available.
3. Download V380 Pro from the appropriate official app store.
4. Create or sign in to the V380 Pro account.
5. Select the option to add a camera.
6. Follow the on-screen instructions and use the supplied device information or QR code when requested.
7. Complete the network connection and confirm that live video is visible.
8. Configure the available monitoring, recording, audio, detection, movement and zoom settings as required.

The exact pairing screens and available controls may vary with the V380 Pro app version, smartphone operating system and selected connectivity variant.

Solar Charging with an 8000mAh Battery

The camera system uses a 5V 7W solar panel and a 3.7V 8000mAh rechargeable lithium-ion battery. This reduces dependence on a nearby wired power connection and makes the system useful for outdoor and remote installations.

Install the solar panel where it can receive strong, unobstructed sunlight. Avoid locations that remain shaded by trees, buildings, walls, roofs or other structures. Correct panel placement is important for maintaining effective charging.

The system is designed to provide approximately 5–7 days of backup under suitable charging and operating conditions. Actual backup depends on available sunlight, network strength, live-view frequency, recording activity, night operation, detections, two-way-audio usage and PTZ operation.

Local Recording with microSD Support

The camera supports a compatible microSD card of up to 256GB for local recording storage. Recording duration depends on card capacity, activity levels, recording frequency and the settings selected in the V380 Pro application.

The microSD card should be purchased separately unless it is specifically included in the confirmed order package.

IP66 Outdoor Protection

The IP66-rated housing is designed to resist dust and water exposure encountered during normal outdoor use. Secure installation remains essential. The camera, solar panel and connections should be mounted correctly and protected from abnormal physical impact or submersion.

Suitable Applications

• Farms and agricultural premises
• Warehouses and storage yards
• Construction and infrastructure sites
• Factories and industrial areas
• Parking areas and open compounds
• Building entrances and gates
• Commercial premises
• Remote locations without convenient wired power

Key Features

• 5MP five-camera monitoring system
• Three PTZ assemblies
• App-controlled pan, tilt and zoom-enabled viewing
• Separate 4G and Wi-Fi variants
• 5V 7W solar panel
• 3.7V 8000mAh rechargeable lithium-ion battery
• Approximately 5–7 days backup under suitable conditions
• Night vision
• Human-detection recording
• V380 Pro mobile application
• Remote audio and video monitoring
• Two-way audio
• 360° rotational viewing
• microSD card support up to 256GB
• IP66 weather-resistant rating
• One-year comprehensive warranty

Warranty

The FOS 5MP Five-Camera Solar CCTV includes a one-year comprehensive warranty. Warranty coverage is subject to the applicable Future Energy warranty terms and does not cover physical damage, incorrect installation, unauthorised modification, incompatible accessories or damage caused by misuse.
