- Product: FOS 40W 2×2 Recessed LED Panel Light
- LED power: 40W
- Luminous flux: ≥4,400 lumens
- LED technology: SMD 2835; 200 × 0.2W
- Design: Slim, side-lit square panel
- Installation: Recessed / lay-in for compatible modular false-ceiling grids
- Dimensions: 600 × 600 × 10.5mm
- Housing: White powder-coated aluminium
- Light Color: Cool White 6500K / Neutral White 4000K / Warm White 2700K (select variation)
- CRI: >75
- Input: AC 90–265V; external high-power-factor LED driver; PF >0.98
- Warranty: 2 years against manufacturing defects, subject to standard exclusions
Description

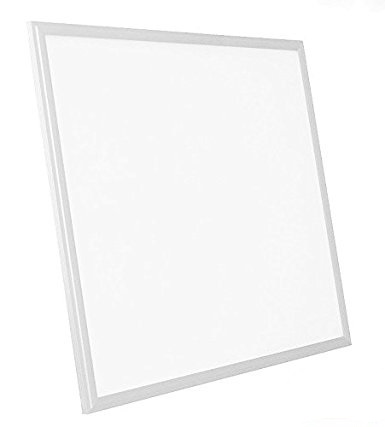

FOS 40W 2×2 Recessed/Lay-In LED Panel Light
The FOS 40W 2×2 LED panel light delivers at least 4,400 lumens through a broad square illuminated face. Its side-lit construction and white powder-coated aluminium housing suit general lighting in offices, meeting rooms, reception areas and commercial interiors. The panel measures 600 × 600 × 10.5mm and uses an external high-power-factor LED driver, with three fixed white-light colour options available when ordering.
Panel Construction and Light Quality
The 40W LED arrangement uses 200 × 0.2W SMD 2835 elements. Side-lit technology supports a slim 10.5mm panel profile and a clean illuminated surface. The broad square format can be repeated across a room to create a coordinated lighting layout.
A colour-rendering index greater than 75 and the choice of white-light tones provide useful references for selecting the panel. Consider these alongside room finishes and the activities taking place below. For workstations, assess both the light reaching the desk and the position of the panel in relation to monitors and normal viewing directions.

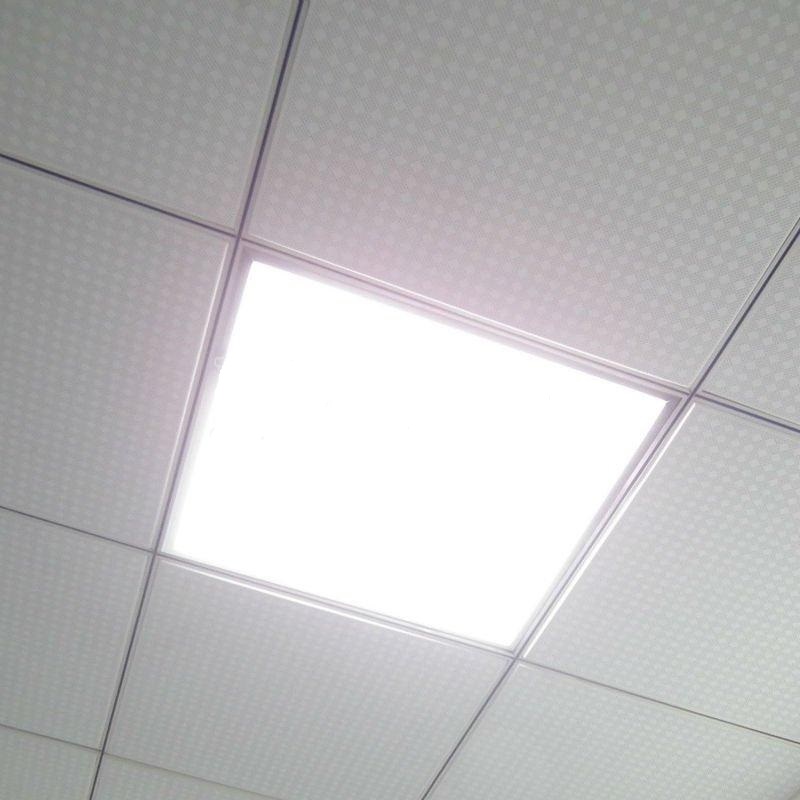

Recessed and Lay-In Installation
This model is designed for compatible modular false-ceiling grids. Check the actual grid opening, support arrangement and access above the ceiling against the 600 × 600 × 10.5mm panel dimensions. Plan the position of the external driver and cable route while the ceiling space is accessible, allowing the panel to sit correctly within its supporting grid.
Coordinate panel locations with the ceiling module layout, air outlets and other services. The installer should assess the grid and any support requirements for the fitting, then follow the ceiling system and product installation instructions. Maintain access to the driver for future inspection without placing strain on the panel connections.
Applications and Lighting Layout
In offices and meeting rooms, position panels around desks, tables and circulation areas. An organised ceiling layout helps distribute general illumination across the activities taking place below. Assess the placement of partitions and storage, particularly where they could shade a working area. Coordinate ceiling lighting with local task lights wherever more focused illumination is useful.
For reception areas, commercial rooms and corridors, plan the arrangement around entrances, counters and the main routes through the building. Fixture quantity and spacing should reflect ceiling height, room dimensions, surface reflectance and daylight. Where several rooms connect visually, use consistent panel alignment and a considered choice of light colour to maintain continuity through the interior.
Choose Your Light Colour
Select your preferred colour temperature when ordering: Cool White 6500K, Neutral White 4000K or Warm White 2700K. Each variation provides one fixed white-light colour. Cool White creates a crisp visual tone for task-focused interiors; Neutral White offers a balanced appearance for everyday rooms; Warm White brings a warmer atmosphere to lounges, hospitality areas and relaxed seating spaces.
Consider wall finishes, furniture colours and adjoining rooms when making your choice. Matching the colour temperature of panels within the same open area helps create a coherent lighting scheme. If separate rooms serve different purposes, choose the light colour for each activity while considering how the transition between those rooms will look.
Driver and Installation Planning
The external high-power-factor LED driver operates with an AC 90–265V input and a power factor greater than 0.98. Have a qualified electrician check the supply, identify the driver connections and position the driver where it can be reached for inspection. Plan the cable route before fixing the panel so that wiring sits neatly and is protected from sharp edges and pressure.
Isolate the electrical supply before installation or maintenance. The installer should choose fixings appropriate to the actual ceiling material and supporting structure, follow the supplied component arrangement, and check that the fitting is secure before restoring power. Allow suitable space for the driver and its leads, keeping connections supported and accessible. A final inspection should confirm secure mounting, sound connections and the intended position of the illuminated face.
Care
Disconnect the supply before cleaning or inspection. Remove surface dust with a soft, dry cloth and keep cleaning liquids away from the driver and electrical connections. Protect the white finish from abrasive materials. Include mounting security, cable condition and driver access in routine maintenance checks.
Technical Specifications
- Brand: FOS
- Product: 40W 2×2 recessed/lay-in LED panel light
- LED power: 40W
- Luminous flux: ≥4,400 lumens
- LED technology: SMD 2835
- LED configuration: 200 × 0.2W
- Panel technology: Side-lit
- Installation: Recessed / lay-in, compatible modular false-ceiling grids
- Panel dimensions: 600 × 600 × 10.5mm
- Housing: White powder-coated aluminium
- Colour rendering index: CRI >75
- Input voltage: AC 90–265V
- LED driver: External high-power-factor LED driver
- Power factor: >0.98
- Light Color variations: Cool White 6500K; Neutral White 4000K; Warm White 2700K
Warranty
This LED panel light carries a 2-year warranty against manufacturing defects, subject to standard warranty exclusions. Retain your proof of purchase and product details for warranty enquiries.
Additional information
| Dimensions | N/A |
|---|---|
| Light Color | Cool White 6500k, Neutral White 4000k, Warm White 2700k |
| LED Power | 40W |
| Luminous Flux | ≥4,400 lumens |
| LED Technology | SMD 2835 |
| LED Configuration | 200 × 0.2W |
| Panel Technology | Side-lit |
| Installation | Recessed / Lay-in |
| Ceiling Compatibility | Modular false-ceiling grids |
| Shape | Square |
| Panel Dimensions | 600 × 600 × 10.5mm |
| Housing Material | Aluminium |
| Housing Finish | White powder-coated |
| CRI | >75 |
| Input Voltage | AC 90–265V |
| LED Driver | External high-power-factor LED driver |
| Power Factor | >0.98 |
| Warranty | 2 years against manufacturing defects, subject to standard exclusions |
